EL7156CN

In Stock: 3,077

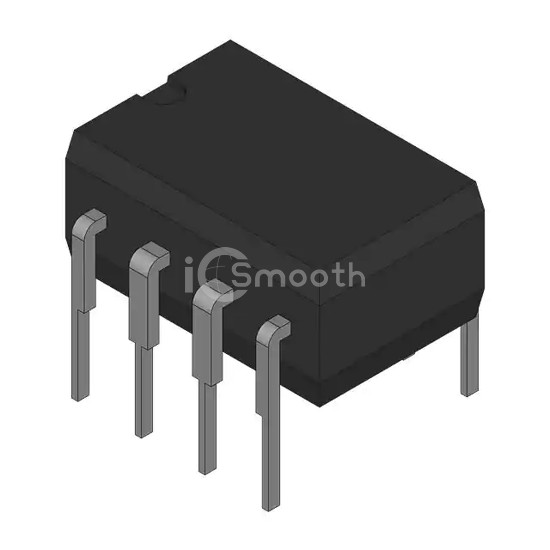

EL7156CN - Intersil - PMIC - Gate Drivers
REF: EL7156CN Intersil
EL7156CN

Intersil

HALF BRIDGE PERIPHERAL DRIVER

EL7156CN is a PMIC - Gate Drivers manufactured by Intersil. HALF BRIDGE PERIPHERAL DRIVER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 16.5V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,077

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHigh-Side or Low-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT
Voltage - Supply4.5V ~ 16.5V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)3.5A, 3.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)14.5ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-PDIP
