Name: EL5252IY
Brand: Intersil
SKU: EL5252IY
Price: 1.36 USD
Availability: InStock

REF: EL5252IY Intersil

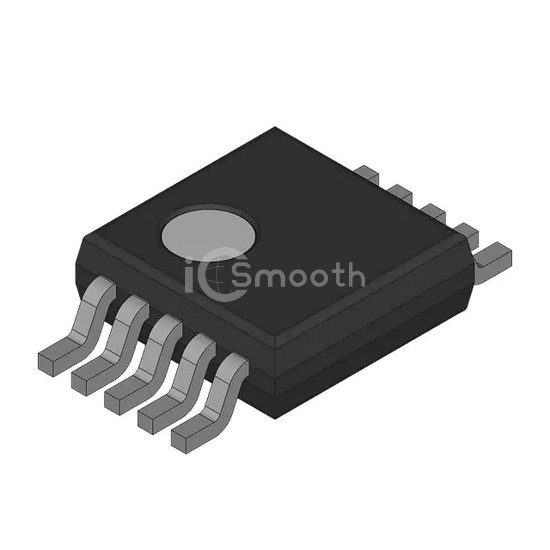

EL5252IY

IC OPAMP VFB 2 CIRCUIT 10MSOP

EL5252IY is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Intersil. IC OPAMP VFB 2 CIRCUIT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), current - supply 3mA (x2 Channels).

Datasheet Request a Quote

In Stock: 3,863

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Voltage Feedback
Number of Circuits	2
Output Type	-
Slew Rate	180V/µs
Gain Bandwidth Product	165 MHz
-3db Bandwidth	270 MHz
Current - Input Bias	120 nA
Voltage - Input Offset	500 µV

Current - Supply	3mA (x2 Channels)
Current - Output / Channel	105 mA
Voltage - Supply Span (Min)	5 V
Voltage - Supply Span (Max)	12 V
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
