Name: EL5202IY
Brand: Intersil
SKU: EL5202IY
Availability: InStock

REF: EL5202IY Intersil

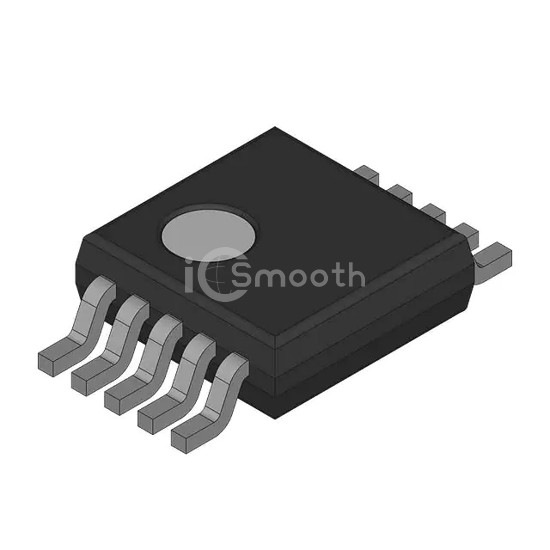

EL5202IY

IC OPAMP VFB 2 CIRCUIT 10MSOP

EL5202IY is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Intersil. IC OPAMP VFB 2 CIRCUIT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), current - supply 5.2mA (x2 Channels).

Datasheet Request a Quote

In Stock: 6,165

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Voltage Feedback
Number of Circuits	2
Output Type	-
Slew Rate	2200V/µs
Gain Bandwidth Product	-
-3db Bandwidth	400 MHz
Current - Input Bias	2 µA
Voltage - Input Offset	1 mV

Current - Supply	5.2mA (x2 Channels)
Current - Output / Channel	150 mA
Voltage - Supply Span (Min)	3 V
Voltage - Supply Span (Max)	13.2 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
