EPM9560RC208-15

In Stock: 3,255

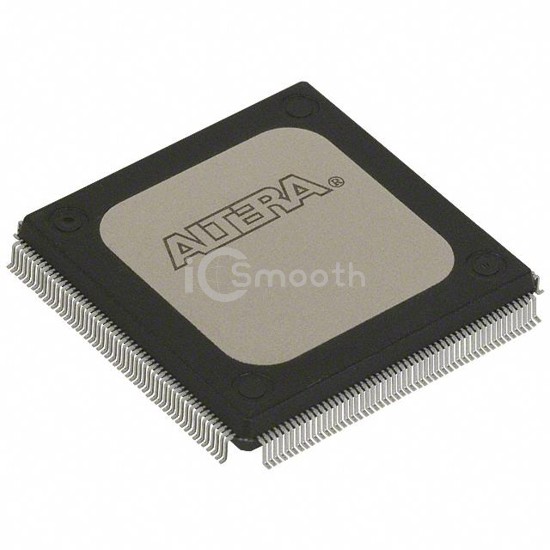

EPM9560RC208-15 - Intel - Embedded - CPLDs (Complex Programmable Logic Devices)
REF: EPM9560RC208-15 Intel
EPM9560RC208-15

Intel

IC CPLD 560MC 15NS 208RQFP

EPM9560RC208-15 is a Embedded - CPLDs (Complex Programmable Logic Devices) manufactured by Intel. IC CPLD 560MC 15NS 208RQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 208-BFQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 3,255

Specifications

12 parameters
Product StatusObsolete
Programmable TypeIn System Programmable
Delay Time tpd(1) Max15 ns
Voltage Supply - Internal4.75V ~ 5.25V
Number of Logic Elements/Blocks35
Number of Macrocells560
Number of Gates12000
Number of I/O153
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case208-BFQFP Exposed Pad
Supplier Device Package208-RQFP (28x28)
