SCR MODULE 2200V 1500A MODULE

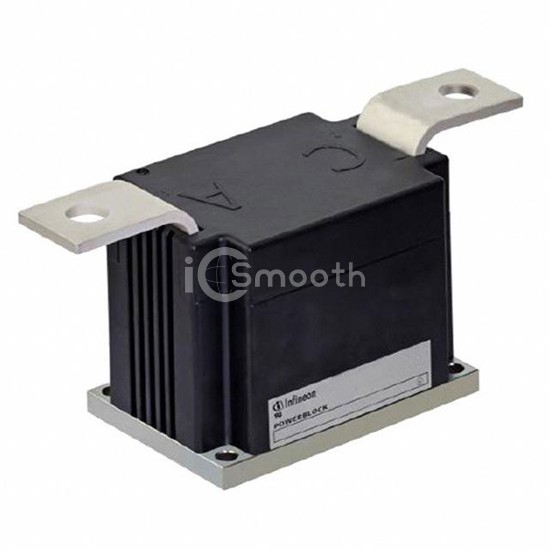

TZ810N22KOFB01HPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. SCR MODULE 2200V 1500A MODULE. Key specifications: mounting type Chassis Mount, operating temperature 125°C (TJ), package / case Module.
In Stock: 5,452
| Product Status | Obsolete |
|---|---|
| Structure | Single |
| Number of SCRs, Diodes | 1 SCR |
| Voltage - Off State | 2.2 kV |
| Current - On State (It (AV)) (Max) | 819 A |
| Current - On State (It (RMS)) (Max) | 1500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
|---|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 39000A @ 50Hz |
| Current - Hold (Ih) (Max) | 500 mA |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
