TT820N16KOFTIMHPSA1

In Stock: 2

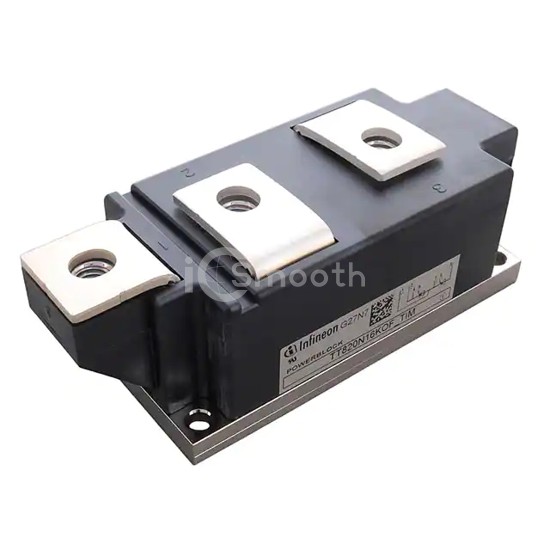

TT820N16KOFTIMHPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TT820N16KOFTIMHPSA1 Infineon Technologies
TT820N16KOFTIMHPSA1

Infineon Technologies

THYR / DIODE MODULE DK BG-PB60AT

TT820N16KOFTIMHPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. THYR / DIODE MODULE DK BG-PB60AT. Key specifications: mounting type Chassis Mount, operating temperature 135°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 2

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)820 A
Current - On State (It (RMS)) (Max)1050 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)24800A @ 50Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature135°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
