TT60N16SOFB01HPSA1

In Stock: 6,513

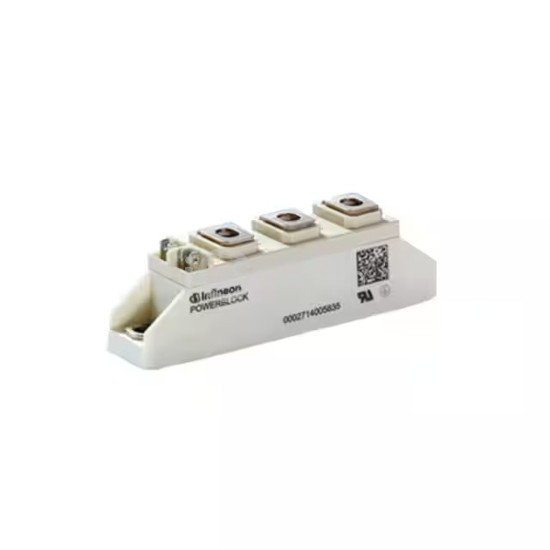

TT60N16SOFB01HPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TT60N16SOFB01HPSA1 Infineon Technologies
TT60N16SOFB01HPSA1

Infineon Technologies

SCR MODULE 1600V 90A MODULE

TT60N16SOFB01HPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. SCR MODULE 1600V 90A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module.

Datasheet Request a Quote

In Stock: 6,513

Tiered Pricing USD
1+ $31.3200 —
12+ $22.5550 -28%
108+ $19.9375 -36% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)55 A
Current - On State (It (RMS)) (Max)90 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1500A @ 50Hz
Current - Hold (Ih) (Max)250 mA
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
