TT320N16SOFTIMHPSA1

In Stock: 2,346

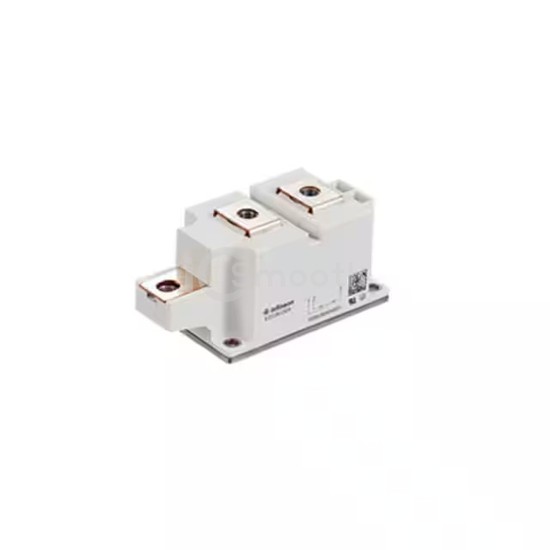

TT320N16SOFTIMHPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TT320N16SOFTIMHPSA1 Infineon Technologies
TT320N16SOFTIMHPSA1

Infineon Technologies

LT-BOND MODULE

TT320N16SOFTIMHPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. LT-BOND MODULE. Key specifications: mounting type Chassis Mount, operating temperature 130°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 2,346

Tiered Pricing USD
3+ $89.5500 —
12+ $84.0250 -6% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)320 A
Current - On State (It (RMS)) (Max)520 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9500A @ 50Hz
Current - Hold (Ih) (Max)150 mA
Operating Temperature130°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
