TT120N16SOFB01HPSA1

In Stock: 2,653

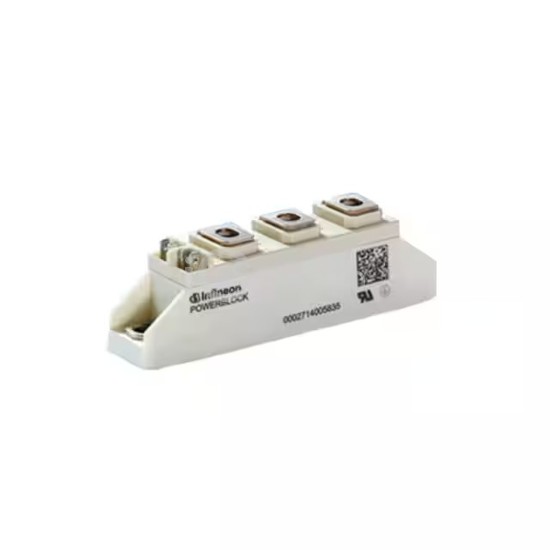

TT120N16SOFB01HPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TT120N16SOFB01HPSA1 Infineon Technologies
TT120N16SOFB01HPSA1

Infineon Technologies

SCR MODULE SB20-1

TT120N16SOFB01HPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. SCR MODULE SB20-1. Key specifications: mounting type Chassis Mount, operating temperature 130°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 2,653

Tiered Pricing USD
1+ $33.1700 —
12+ $23.9767 -28%
108+ $21.4250 -35% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)119 A
Current - On State (It (RMS)) (Max)190 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)22500A @ 50Hz
Current - Hold (Ih) (Max)250 mA
Operating Temperature130°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
