TLF42772ELXUMA2

In Stock: 7,500

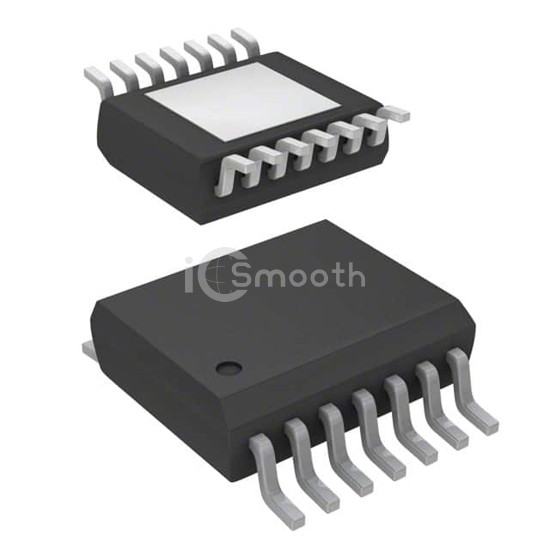

TLF42772ELXUMA2 - Infineon Technologies - PMIC - Voltage Regulators - Linear
REF: TLF42772ELXUMA2 Infineon Technologies
TLF42772ELXUMA2

Infineon Technologies

IC REG LIN POS ADJ 300MA SSOP-14

TLF42772ELXUMA2 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LIN POS ADJ 300MA SSOP-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 14-LSSOP (0.154", 3.90mm Width) Exposed Pad, current - supply (max) 11 mA.

Datasheet Request a Quote

In Stock: 7,500

Tiered Pricing USD
1+ $2.4300 —
10+ $1.8080 -26%
25+ $1.6516 -32%
100+ $1.4795 -39%
250+ $1.3974 -42%
500+ $1.3480 -45%
1,000+ $1.3072 -46% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)12V
Voltage Dropout (Max)0.5V @ 200mA
Current - Output300mA
Current - Quiescent (Iq)200 µA
Current - Supply (Max)11 mA
PSRR65dB (100Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case14-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-SSOP-14-EP
