TLE9180D32QKXUMA1

In Stock: 8,791

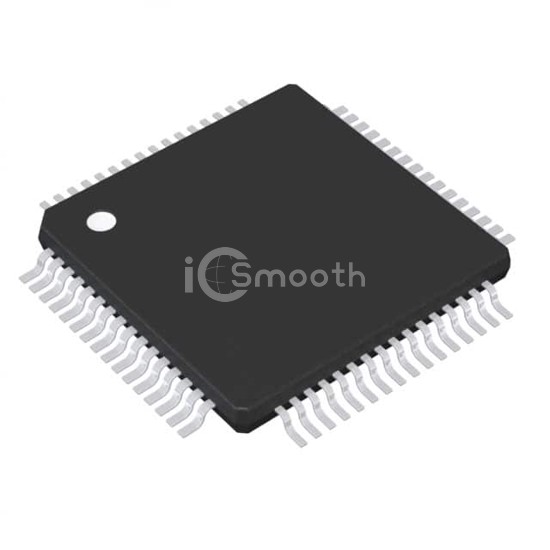

TLE9180D32QKXUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: TLE9180D32QKXUMA1 Infineon Technologies
TLE9180D32QKXUMA1

Infineon Technologies

DRIVER_IC

TLE9180D32QKXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. DRIVER_IC. Key specifications: mounting type Surface Mount, voltage - supply 6V ~ 60V, package / case 64-LQFP Exposed Pad.

Request a Quote

In Stock: 8,791

Tiered Pricing USD
1+ $6.4900 —
10+ $4.9860 -23%
25+ $4.6108 -29%
100+ $4.1988 -35%
250+ $4.0023 -38%
500+ $3.8839 -40% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeN-Channel MOSFET
Voltage - Supply6V ~ 60V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)2A
Input Type-
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)35ns, 35ns
Operating Temperature-
Mounting TypeSurface Mount
Package / Case64-LQFP Exposed Pad
Supplier Device PackagePG-LQFP-64-27
