TLE9180D31QKXUMA1

In Stock: 3,844

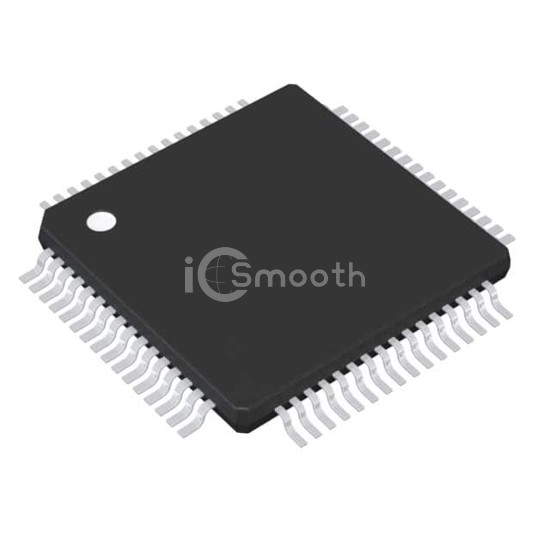

TLE9180D31QKXUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: TLE9180D31QKXUMA1 Infineon Technologies
TLE9180D31QKXUMA1

Infineon Technologies

IC MOTOR CONTROLLER 64-LQFP

TLE9180D31QKXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC MOTOR CONTROLLER 64-LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 60V, package / case 64-LQFP Exposed Pad.

Request a Quote

In Stock: 3,844

Tiered Pricing USD
1+ $6.4300 —
10+ $4.9390 -23%
25+ $4.5668 -29%
100+ $4.1583 -35%
250+ $3.9634 -38%
500+ $3.8459 -40% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 60V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case64-LQFP Exposed Pad
Supplier Device PackagePG-LQFP-64-27
