TLE9180D21QKXUMA1

In Stock: 9,844

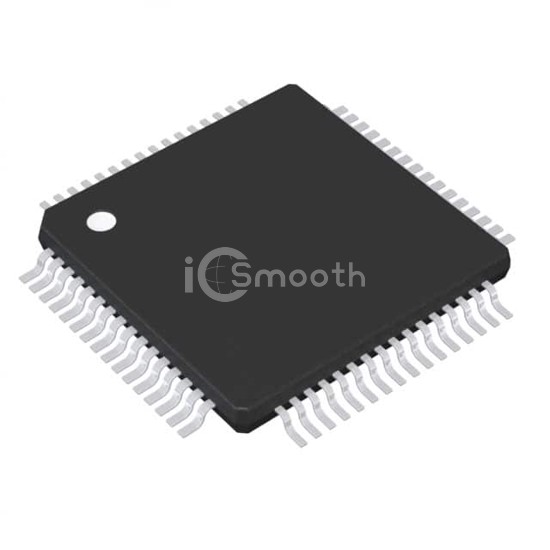

TLE9180D21QKXUMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: TLE9180D21QKXUMA1 Infineon Technologies
TLE9180D21QKXUMA1

Infineon Technologies

DRIVER_IC

TLE9180D21QKXUMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. DRIVER_IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 60V, package / case 64-LQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 9,844

Tiered Pricing USD
1+ $6.2500 —
10+ $4.7990 -23%
25+ $4.4364 -29%
100+ $4.0374 -35%
250+ $3.8472 -38%
500+ $3.7327 -40% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 60V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)1A, 1A
Input TypeTTL
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case64-LQFP Exposed Pad
Supplier Device PackagePG-LQFP-64-27
