Name: TLE7469GV52
Brand: Infineon Technologies
SKU: TLE7469GV52
Availability: InStock

REF: TLE7469GV52 Infineon Technologies

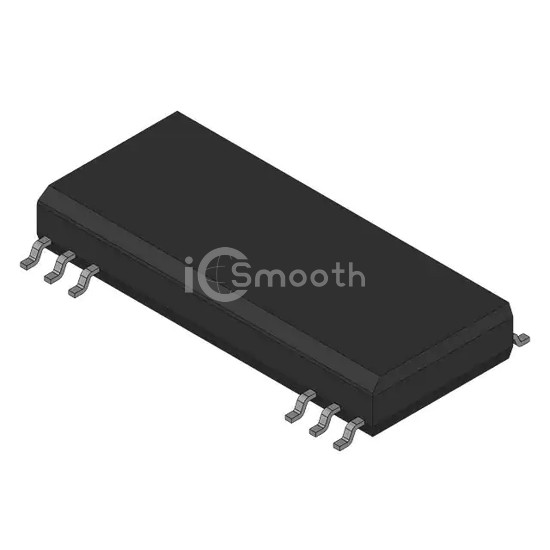

TLE7469GV52

IC REG LINEAR VOLT TLE7469

TLE7469GV52 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LINEAR VOLT TLE7469. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad, current - output 200mA, 215mA.

Datasheet Request a Quote

In Stock: 7,942

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	2.6V, 5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 215mA
Current - Output	200mA, 215mA

Current - Quiescent (Iq)	55 µA
Current - Supply (Max)	-
PSRR	60dB (100Hz)
Control Features	Inhibit, Reset, Watchdog
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package	PG-DSO-12
