Name: TLE7276G
Brand: Infineon Technologies
SKU: TLE7276G
Availability: InStock

REF: TLE7276G Infineon Technologies

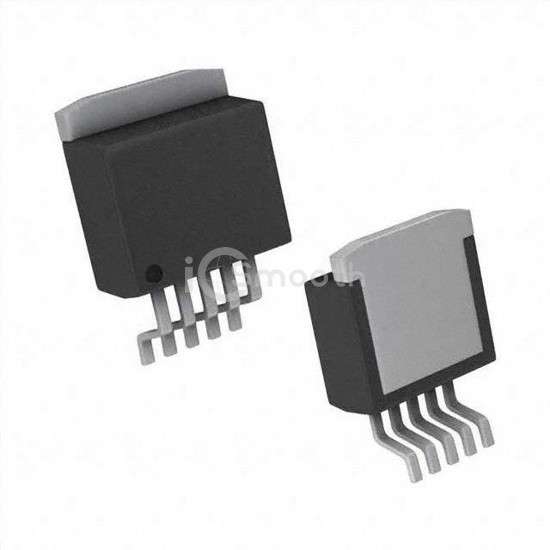

TLE7276G

IC REG LINEAR 5V 300MA TO263-5-1

TLE7276G is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LINEAR 5V 300MA TO263-5-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 40 µA.

Datasheet Request a Quote

In Stock: 3,503

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 200mA
Current - Output	300mA

Current - Quiescent (Iq)	30 µA
Current - Supply (Max)	40 µA
PSRR	60dB (100Hz)
Control Features	Inhibit
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	PG-TO263-5-1
