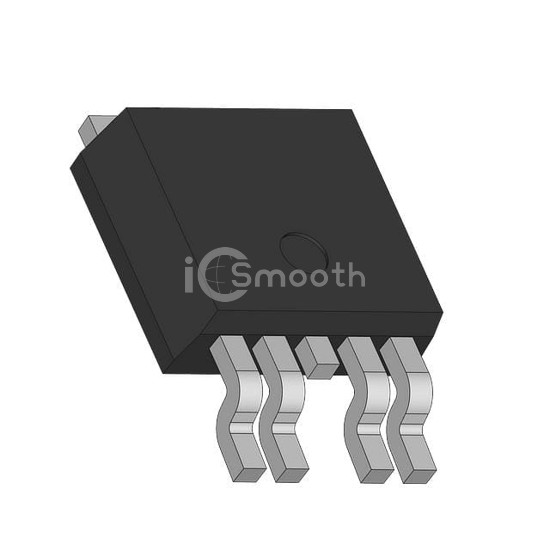

Name: TLE7270-2D
Brand: Infineon Technologies
SKU: TLE7270-2D
Availability: InStock

REF: TLE7270-2D Infineon Technologies

TLE7270-2D

IC REG LINEAR VOLT TLE7270

TLE7270-2D is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LINEAR VOLT TLE7270. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - output 300mA.

Datasheet Request a Quote

In Stock: 1,342

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	42V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 200mA
Current - Output	300mA

Current - Quiescent (Iq)	40 µA
Current - Supply (Max)	-
PSRR	60dB (100Hz)
Control Features	Delay, Reset
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	PG-TO252-5
