TLE7181EM

In Stock: 9,136

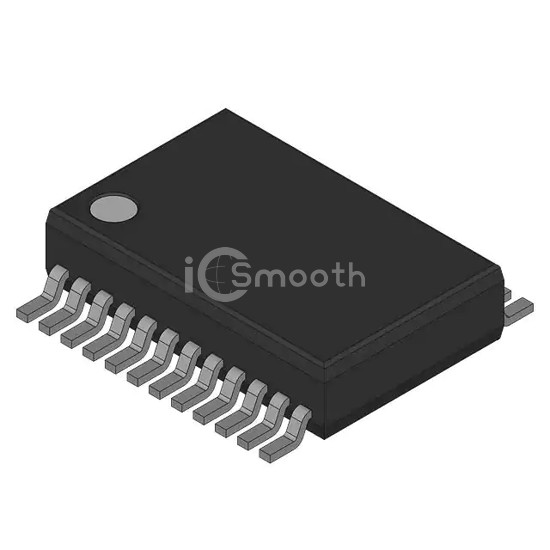

TLE7181EM - Infineon Technologies - PMIC - Gate Drivers
REF: TLE7181EM Infineon Technologies
TLE7181EM

Infineon Technologies

TLE7181 - GATE DRIVER

TLE7181EM is a PMIC - Gate Drivers manufactured by Infineon Technologies. TLE7181 - GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 45V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,136

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply5.5V ~ 45V
Logic Voltage - VIL, VIH1V, 2V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)55 V
Rise / Fall Time (Typ)250ns, 200ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-SSOP-24
