Name: TLE4990HAXA1
Brand: Infineon Technologies
SKU: TLE4990HAXA1
Availability: InStock

REF: TLE4990HAXA1 Infineon Technologies

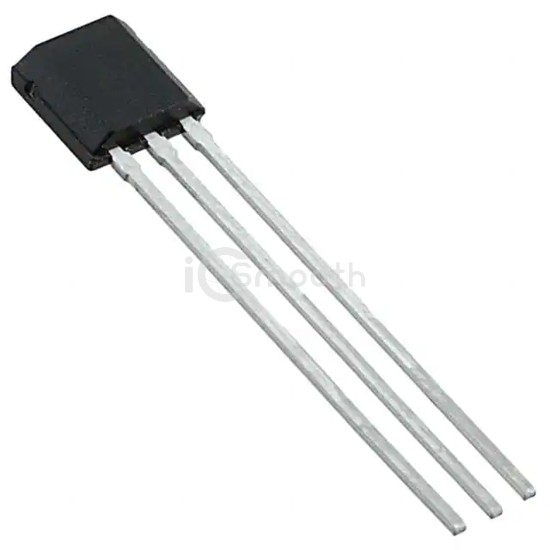

TLE4990HAXA1

SENSOR HALL ANALOG SSO3-10

TLE4990HAXA1 is a Magnetic Sensors - Linear, Compass (ICs) manufactured by Infineon Technologies. SENSOR HALL ANALOG SSO3-10. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 3-SSIP, SSO-3-10.

Datasheet Request a Quote

In Stock: 8,707

Specifications

15 parameters

Product Status	Obsolete
Technology	Hall Effect
Axis	Single
Output Type	Analog Voltage
Sensing Range	±200mT
Voltage - Supply	4.5V ~ 5.5V
Current - Supply (Max)	5.5mA
Current - Output (Max)	1.2mA

Resolution	-
Bandwidth	-
Operating Temperature	-40°C ~ 150°C (TA)
Features	Programmable, Temperature Compensated
Supplier Device Package	PG-SSO-3-10
Mounting Type	Through Hole
Package / Case	3-SSIP, SSO-3-10
