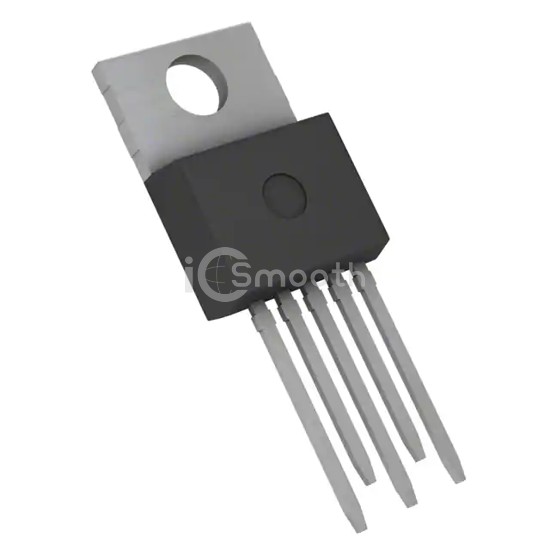

Name: TLE4276SVAKSA2
Brand: Infineon Technologies
SKU: TLE4276SVAKSA2
Availability: InStock

REF: TLE4276SVAKSA2 Infineon Technologies

TLE4276SVAKSA2

IC REG LIN POS ADJ 400MA TO220-5

TLE4276SVAKSA2 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LIN POS ADJ 400MA TO220-5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case TO-220-5, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 3,937

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	20V
Voltage Dropout (Max)	0.5V @ 250mA
Current - Output	400mA

Current - Quiescent (Iq)	200 µA
Current - Supply (Max)	25 mA
PSRR	54dB (100Hz)
Control Features	Inhibit
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-220-5
Supplier Device Package	P-TO220-5-43
