Name: TLE42712SAKSA1
Brand: Infineon Technologies
SKU: TLE42712SAKSA1
Availability: InStock

REF: TLE42712SAKSA1 Infineon Technologies

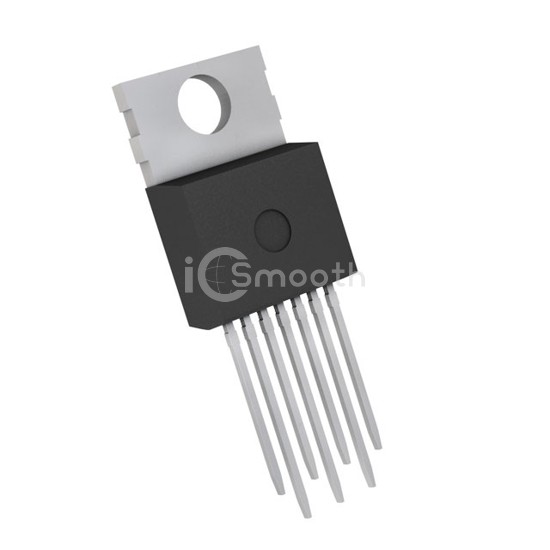

TLE42712SAKSA1

IC REG LIN 5V 550MA TO220-7-12

TLE42712SAKSA1 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LIN 5V 550MA TO220-7-12. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-7, current - supply (max) 90 mA.

Datasheet Request a Quote

In Stock: 9,866

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.7V @ 550mA
Current - Output	550mA

Current - Quiescent (Iq)	6 µA
Current - Supply (Max)	90 mA
PSRR	54dB (100Hz)
Control Features	Reset, Watchdog
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-7
Supplier Device Package	PG-TO220-7-12
