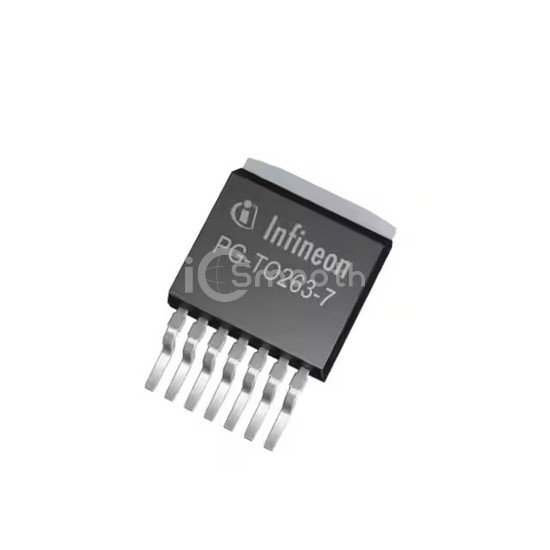

Name: TLE42672GATMA1
Brand: Infineon Technologies
SKU: TLE42672GATMA1
Price: 3.10 USD
Availability: InStock

REF: TLE42672GATMA1 Infineon Technologies

TLE42672GATMA1

Infineon Technologies

IC REG LINEAR 5V 400MA TO263-7-1

TLE42672GATMA1 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LINEAR 5V 400MA TO263-7-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - supply (max) 80 mA.

Datasheet Request a Quote

In Stock: 5,404

Tiered Pricing USD

1+ $3.1000 —

10+ $2.3260 -25%

25+ $2.1316 -31%

100+ $1.9177 -38%

250+ $1.8156 -41%

500+ $1.7541 -43% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 400mA
Current - Output	400mA

Current - Quiescent (Iq)	4 mA
Current - Supply (Max)	80 mA
PSRR	54dB (100Hz)
Control Features	Inhibit, Reset
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package	PG-TO263-7-1
