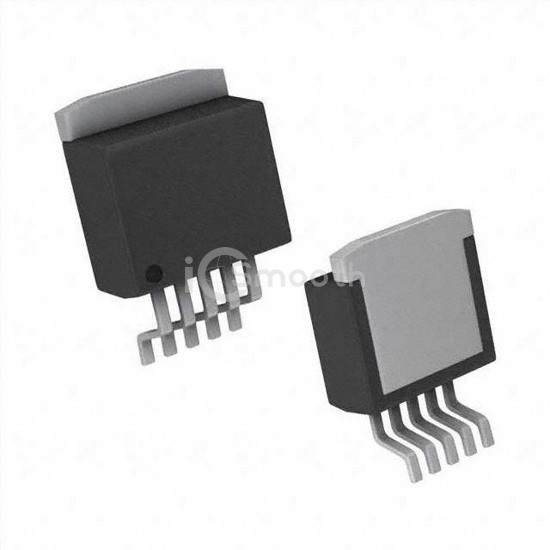

Name: TLE4251GNTMA1
Brand: Infineon Technologies
SKU: TLE4251GNTMA1
Availability: InStock

REF: TLE4251GNTMA1 Infineon Technologies

TLE4251GNTMA1

IC REG LIN POS ADJ 400MA TO263-5

TLE4251GNTMA1 is a PMIC - Voltage Regulators - Linear manufactured by Infineon Technologies. IC REG LIN POS ADJ 400MA TO263-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 20 mA.

Datasheet Request a Quote

In Stock: 3,222

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	Tracking
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.52V @ 300mA
Current - Output	400mA

Current - Quiescent (Iq)	300 µA
Current - Supply (Max)	20 mA
PSRR	60dB (100Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	PG-TO263-5-1
