TD260N22KOFHPSA1

In Stock: 1,694

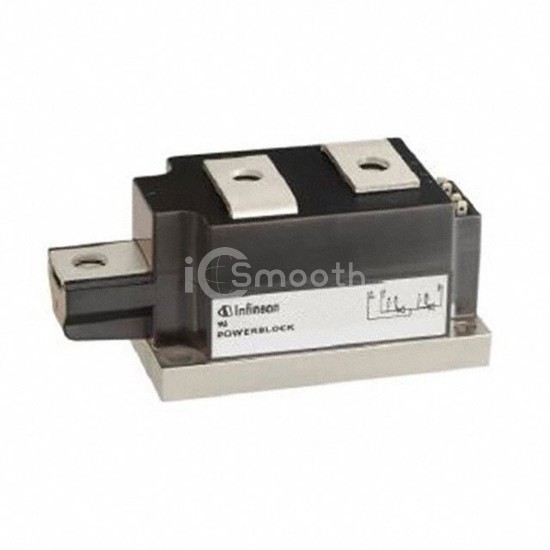

TD260N22KOFHPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TD260N22KOFHPSA1 Infineon Technologies
TD260N22KOFHPSA1

Infineon Technologies

SCR MODULE 2200V 450A MODULE

TD260N22KOFHPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. SCR MODULE 2200V 450A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module.

Datasheet Request a Quote

In Stock: 1,694

Tiered Pricing USD
1+ $180.5300 —
12+ $166.1750 -8% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)287 A
Current - On State (It (RMS)) (Max)450 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9500A @ 50Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
