TD120N16SOFHPSA1

In Stock: 4,481

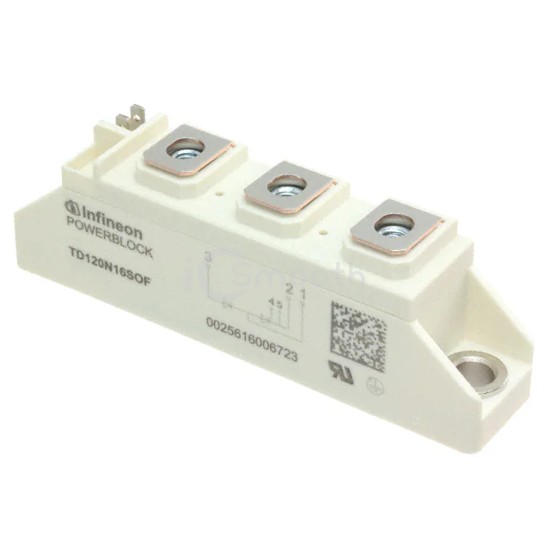

TD120N16SOFHPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: TD120N16SOFHPSA1 Infineon Technologies
TD120N16SOFHPSA1

Infineon Technologies

THYRISTOR MODULE 1600V 120A

TD120N16SOFHPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. THYRISTOR MODULE 1600V 120A. Key specifications: mounting type Surface Mount, operating temperature 130°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 4,481

Tiered Pricing USD
1+ $32.1300 —
12+ $23.1775 -28%
108+ $20.5875 -36% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)119 A
Current - On State (It (RMS)) (Max)190 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)-
Current - Hold (Ih) (Max)250 mA
Operating Temperature130°C (TJ)
Mounting TypeSurface Mount
Package / CaseModule
