T3800N16TOFVTXPSA1

In Stock: 2

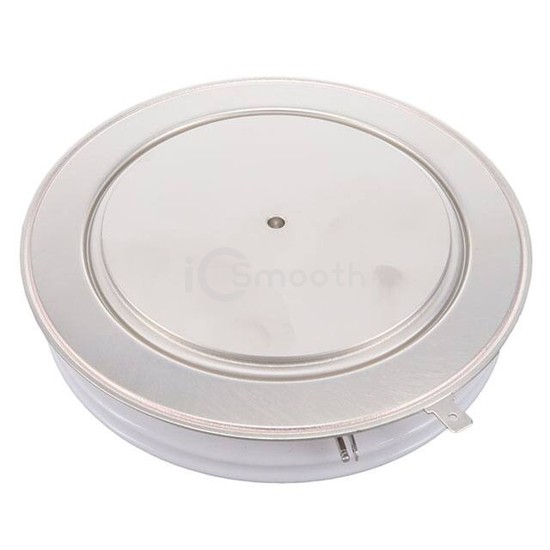

T3800N16TOFVTXPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: T3800N16TOFVTXPSA1 Infineon Technologies
T3800N16TOFVTXPSA1

Infineon Technologies

STD THYR/DIODEN DISC BG-T11126K-

T3800N16TOFVTXPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. STD THYR/DIODEN DISC BG-T11126K-. Key specifications: mounting type Chassis Mount, operating temperature 135°C (TJ), package / case TO-200AE.

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD
2+ $993.7200 —
10+ $919.4410 -7% BEST

Specifications

13 parameters
Product StatusActive
StructureSingle
Number of SCRs, Diodes1 SCR
Voltage - Off State1.8 kV
Current - On State (It (AV)) (Max)3800 A
Current - On State (It (RMS)) (Max)5970 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)63000A @ 50Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature135°C (TJ)
Mounting TypeChassis Mount
Package / CaseTO-200AE
