T2563NH80TOHXOSA1

In Stock: 7,263

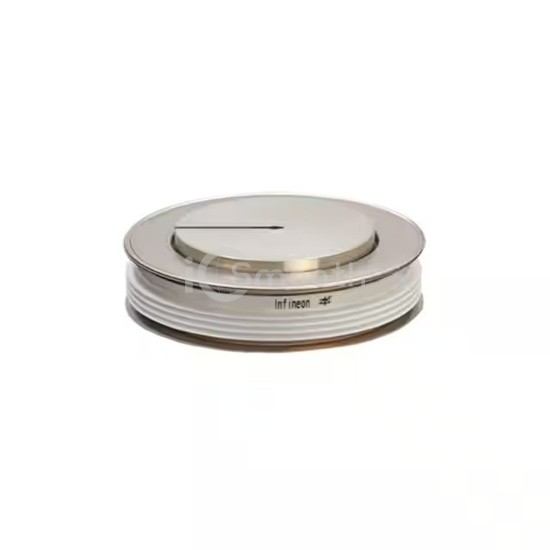

T2563NH80TOHXOSA1 - Infineon Technologies - Thyristors - SCRs
REF: T2563NH80TOHXOSA1 Infineon Technologies
T2563NH80TOHXOSA1

Infineon Technologies

SCR 8KV 3600A T17240L-1

T2563NH80TOHXOSA1 is a Thyristors - SCRs manufactured by Infineon Technologies. SCR 8KV 3600A T17240L-1. Key specifications: mounting type Chassis Mount, operating temperature 120°C (TJ), package / case TO-200AF.

Datasheet Request a Quote

In Stock: 7,263

Specifications

15 parameters
Product StatusActive
Voltage - Off State8 kV
Voltage - Gate Trigger (Vgt) (Max)-
Current - Gate Trigger (Igt) (Max)-
Voltage - On State (Vtm) (Max)2.95 V
Current - On State (It (AV)) (Max)3330 A
Current - On State (It (RMS)) (Max)3600 A
Current - Hold (Ih) (Max)100 mA
Current - Off State (Max)-
Current - Non Rep. Surge 50, 60Hz (Itsm)93000A @ 50Hz
SCR TypeStandard Recovery
Operating Temperature120°C (TJ)
Mounting TypeChassis Mount
Package / CaseTO-200AF
Supplier Device PackageBG-T17240L-1
