Name: T1410N02TOFXPSA1
Brand: Infineon Technologies
SKU: T1410N02TOFXPSA1
Availability: InStock

REF: T1410N02TOFXPSA1 Infineon Technologies

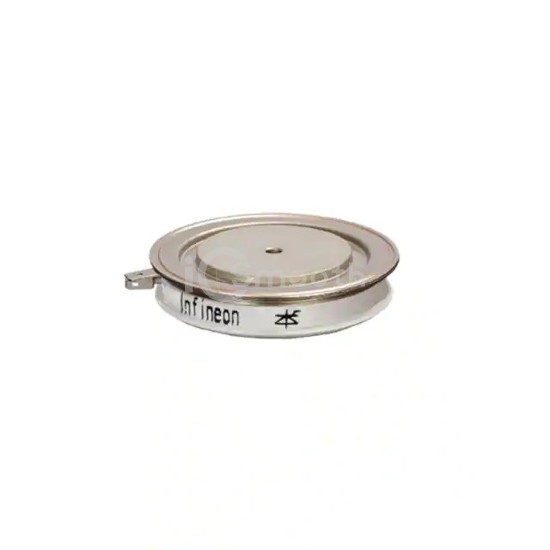

T1410N02TOFXPSA1

SCR MODULE 600V 2500A DO200AB

T1410N02TOFXPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. SCR MODULE 600V 2500A DO200AB. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C, package / case DO-200AB, B-PUK.

Datasheet Request a Quote

In Stock: 8,506

Specifications

13 parameters

Product Status	Obsolete
Structure	Single
Number of SCRs, Diodes	1 SCR
Voltage - Off State	600 V
Current - On State (It (AV)) (Max)	1490 A
Current - On State (It (RMS)) (Max)	2500 A
Voltage - Gate Trigger (Vgt) (Max)	1.5 V

Current - Gate Trigger (Igt) (Max)	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	23000A @ 50Hz
Current - Hold (Ih) (Max)	300 mA
Operating Temperature	-40°C ~ 140°C
Mounting Type	Chassis Mount
Package / Case	DO-200AB, B-PUK
