STT800N18P55XPSA1

In Stock: 3

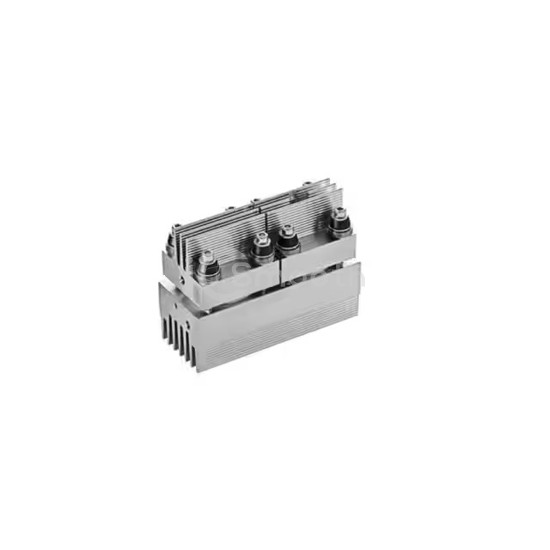

STT800N18P55XPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: STT800N18P55XPSA1 Infineon Technologies
STT800N18P55XPSA1

Infineon Technologies

THYR / DIODE MODULE DK

STT800N18P55XPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. THYR / DIODE MODULE DK. Key specifications: mounting type Chassis Mount, operating temperature 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 3

Tiered Pricing USD
1+ $287.9600 —
10+ $285.4120 -1% BEST

Specifications

13 parameters
Product StatusActive
Structure1-Phase Controller - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.8 kV
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)6300A @ 60Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
