Name: SPU09P06PL
Brand: Infineon Technologies
SKU: SPU09P06PL
Availability: InStock

REF: SPU09P06PL Infineon Technologies

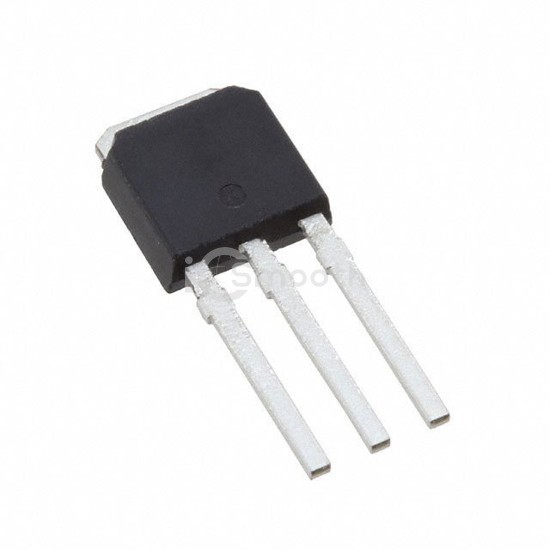

SPU09P06PL

MOSFET P-CH 60V 9.7A TO251-3

SPU09P06PL is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 60V 9.7A TO251-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 2,807

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	9.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	250mOhm @ 6.8A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	P-TO251-3-1
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
