Name: SPS03N60C3BKMA1
Brand: Infineon Technologies
SKU: SPS03N60C3BKMA1
Availability: InStock

REF: SPS03N60C3BKMA1 Infineon Technologies

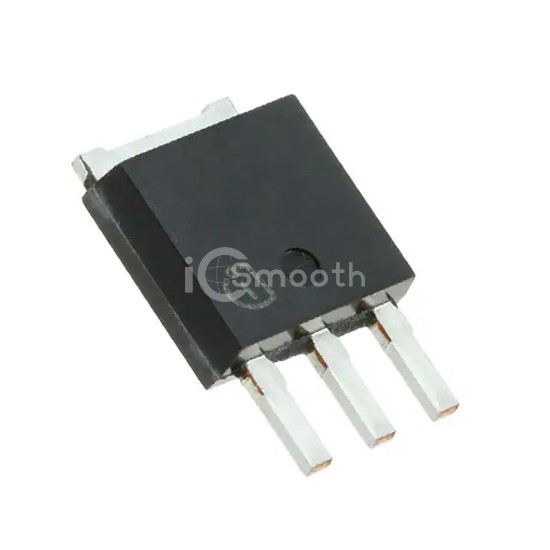

SPS03N60C3BKMA1

MOSFET N-CH 650V 3.2A TO251-3

SPS03N60C3BKMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 650V 3.2A TO251-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 8,108

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	3.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	3.9V @ 135µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO251-3-11
Package / Case	TO-251-3 Stub Leads, IPak
