Name: SPA04N60C3XKSA1
Brand: Infineon Technologies
SKU: SPA04N60C3XKSA1
Availability: InStock

REF: SPA04N60C3XKSA1 Infineon Technologies

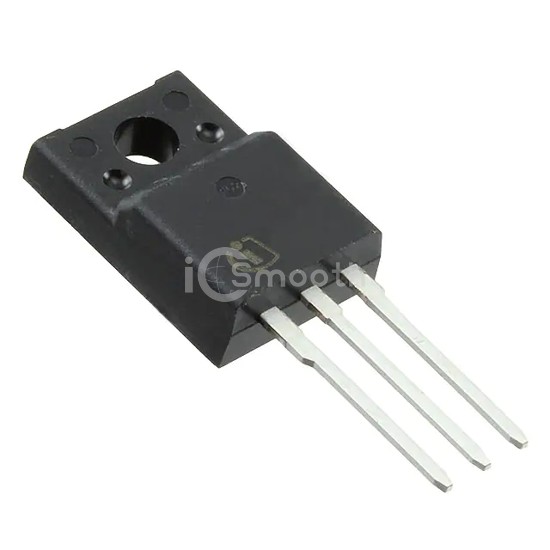

SPA04N60C3XKSA1

MOSFET N-CH 650V 4.5A TO220-FP

SPA04N60C3XKSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 650V 4.5A TO220-FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 7,794

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	950mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id	3.9V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	490 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-3-31
Package / Case	TO-220-3 Full Pack
