PX3517FTMA1

In Stock: 7,884

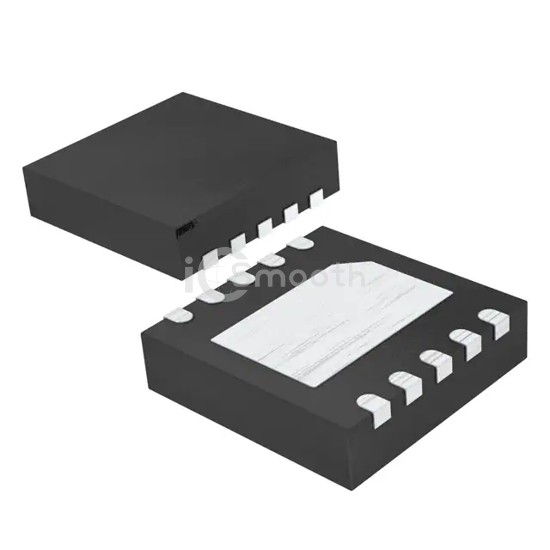

PX3517FTMA1 - Infineon Technologies - PMIC - Gate Drivers
REF: PX3517FTMA1 Infineon Technologies
PX3517FTMA1

Infineon Technologies

IC GATE DRVR HALF-BRIDGE 10TDSON

PX3517FTMA1 is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE 10TDSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 8V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,884

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 8V
Logic Voltage - VIL, VIH0.8V, 2.5V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)30 V
Rise / Fall Time (Typ)10ns, 10ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad
Supplier Device Package10-TDSON (3x3)
