Name: ISP98DP10LMXTSA1
Brand: Infineon Technologies
SKU: ISP98DP10LMXTSA1
Price: 0.82 USD
Availability: InStock

REF: ISP98DP10LMXTSA1 Infineon Technologies

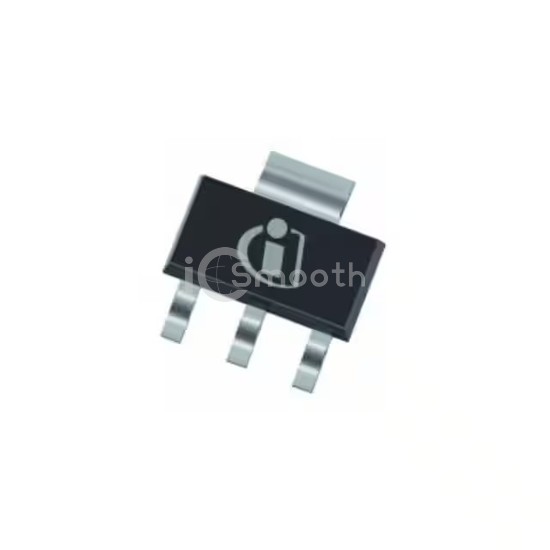

ISP98DP10LMXTSA1

Infineon Technologies

SMALL SIGNAL MOSFETS PG-SOT223-4

ISP98DP10LMXTSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. SMALL SIGNAL MOSFETS PG-SOT223-4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 1,231

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	930mA (Ta), 1.55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	980mOhm @ 900mA, 10V
Vgs(th) (Max) @ Id	2V @ 165µA
Gate Charge (Qg) (Max) @ Vgs	7.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta), 5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223-4
Package / Case	TO-261-4, TO-261AA
