ISC045N03L5SATMA1

In Stock: 3,802

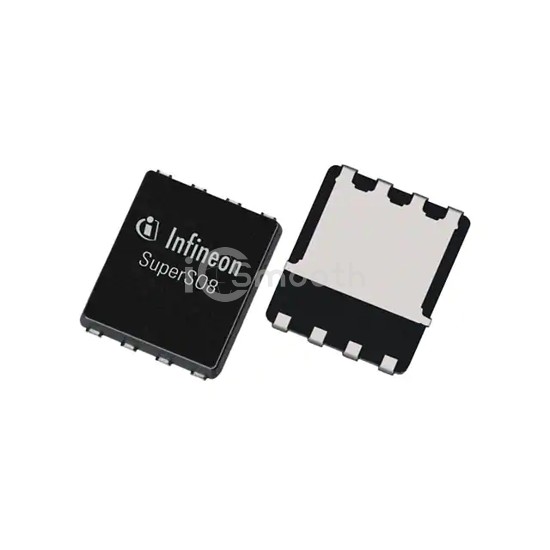

ISC045N03L5SATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: ISC045N03L5SATMA1 Infineon Technologies
ISC045N03L5SATMA1

Infineon Technologies

MOSFET N-CH 30V 18A/63A TDSON

ISC045N03L5SATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 18A/63A TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,802

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C18A (Ta), 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds870 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 30W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-6
Package / Case8-PowerTDFN
