ISC037N03L5ISATMA1

In Stock: 5,444

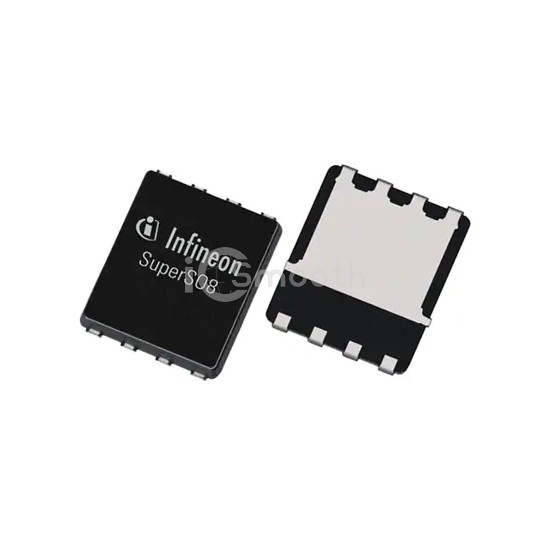

ISC037N03L5ISATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: ISC037N03L5ISATMA1 Infineon Technologies
ISC037N03L5ISATMA1

Infineon Technologies

MOSFET N-CH 30V 20A/78A TDSON

ISC037N03L5ISATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 20A/78A TDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,444

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C20A (Ta), 78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1100 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 37W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-6
Package / Case8-PowerTDFN
