ISC015N04NM5ATMA1

In Stock: 8,622

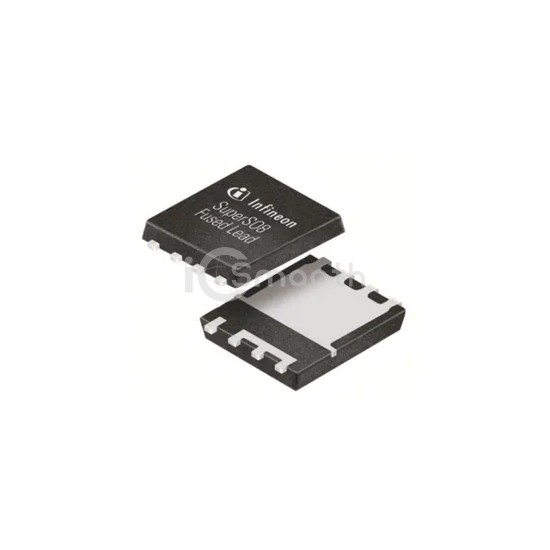

ISC015N04NM5ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: ISC015N04NM5ATMA1 Infineon Technologies
ISC015N04NM5ATMA1

Infineon Technologies

40V 1.5M OPTIMOS MOSFET SUPERSO8

ISC015N04NM5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. 40V 1.5M OPTIMOS MOSFET SUPERSO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,622

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C33A (Ta), 206A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id3.4V @ 60µA
Gate Charge (Qg) (Max) @ Vgs67 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 20 V
FET Feature-
Power Dissipation (Max)3W (Ta), 115W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
