Name: IRLU3717PBF
Brand: Infineon Technologies
SKU: IRLU3717PBF
Availability: InStock

REF: IRLU3717PBF Infineon Technologies

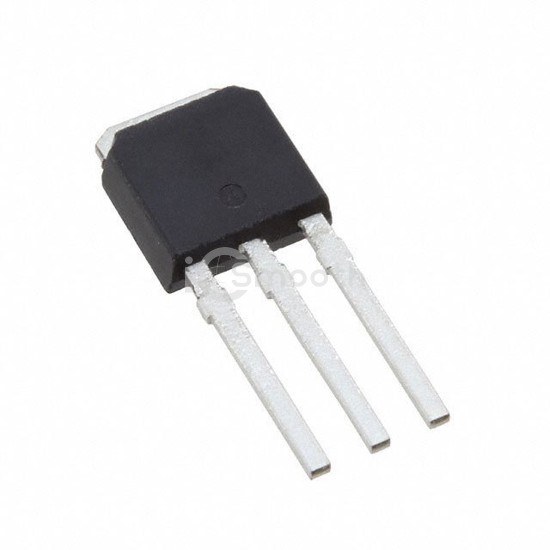

IRLU3717PBF

MOSFET N-CH 20V 120A I-PAK

IRLU3717PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 120A I-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 2,099

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.45V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2830 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	89W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
