Name: IRLU014N
Brand: Infineon Technologies
SKU: IRLU014N
Availability: InStock

REF: IRLU014N Infineon Technologies

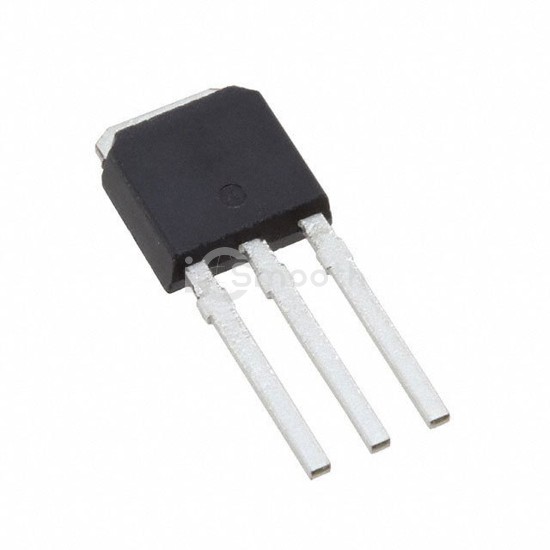

IRLU014N

MOSFET N-CH 55V 10A I-PAK

IRLU014N is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 55V 10A I-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 5,709

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	140mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.9 nC @ 5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	265 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	28W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
