Name: IRLR9343-701PBF
Brand: Infineon Technologies
SKU: IRLR9343-701PBF
Availability: InStock

REF: IRLR9343-701PBF Infineon Technologies

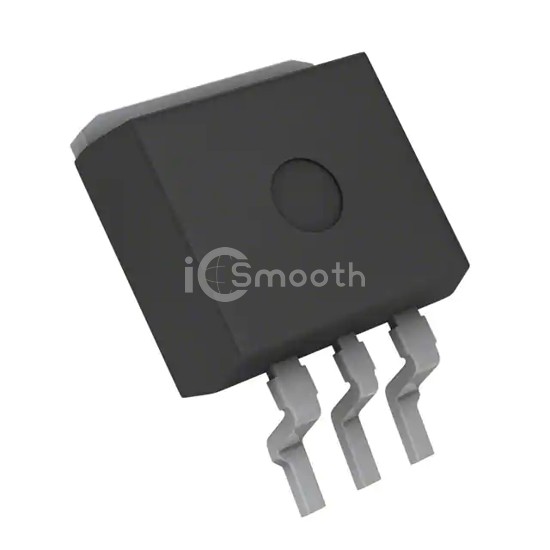

IRLR9343-701PBF

MOSFET P-CH 55V 20A IPAK

IRLR9343-701PBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 55V 20A IPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-252-4, DPak (3 Leads + Tab).

Datasheet Request a Quote

In Stock: 4,644

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	105mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	660 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	79W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	I-PAK (LF701)
Package / Case	TO-252-4, DPak (3 Leads + Tab)
