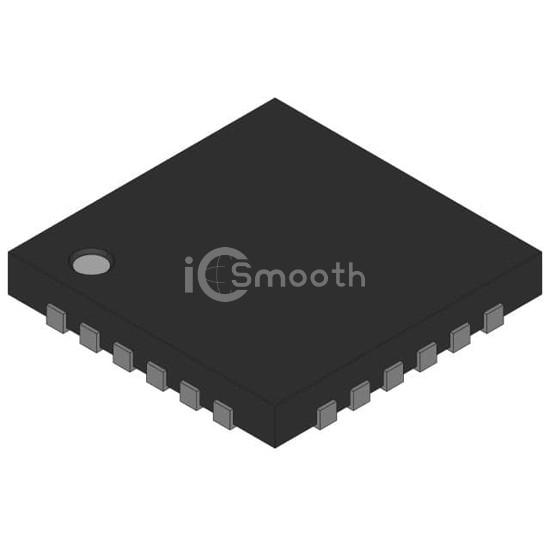

Name: IRLR2908TRLPBF-INF
Brand: Infineon Technologies
SKU: IRLR2908TRLPBF-INF
Availability: InStock

REF: IRLR2908TRLPBF-INF Infineon Technologies

IRLR2908TRLPBF-INF

IRLR2908 - HEXFET POWER MOSFET

IRLR2908TRLPBF-INF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. IRLR2908 - HEXFET POWER MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 4,929

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	28mOhm @ 23A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1890 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	120W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
