Name: IRLML9301TRPBF
Brand: Infineon Technologies
SKU: IRLML9301TRPBF
Price: 0.56 USD
Availability: InStock

REF: IRLML9301TRPBF Infineon Technologies

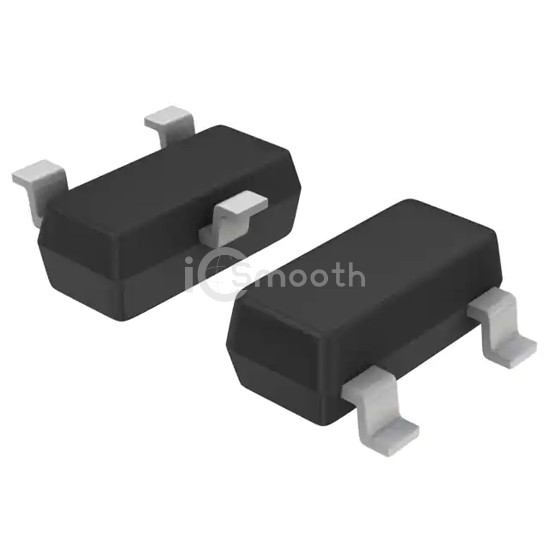

IRLML9301TRPBF

Infineon Technologies

MOSFET P-CH 30V 3.6A SOT23

IRLML9301TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 3.6A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 7,701

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	64mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id	2.4V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	4.8 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	388 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
