Name: IRLML6402TR
Brand: Infineon Technologies
SKU: IRLML6402TR
Availability: InStock

REF: IRLML6402TR Infineon Technologies

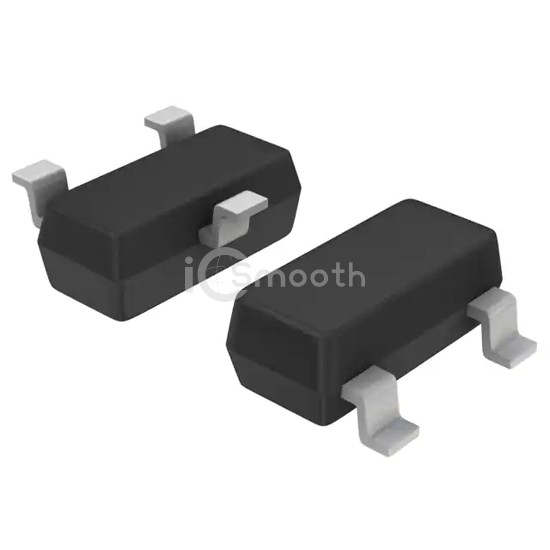

IRLML6402TR

MOSFET P-CH 20V 3.7A SOT-23

IRLML6402TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 20V 3.7A SOT-23. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 6,074

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	65mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	633 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
