Name: IRLML6401TRPBF
Brand: Infineon Technologies
SKU: IRLML6401TRPBF
Price: 0.53 USD
Availability: InStock

REF: IRLML6401TRPBF Infineon Technologies

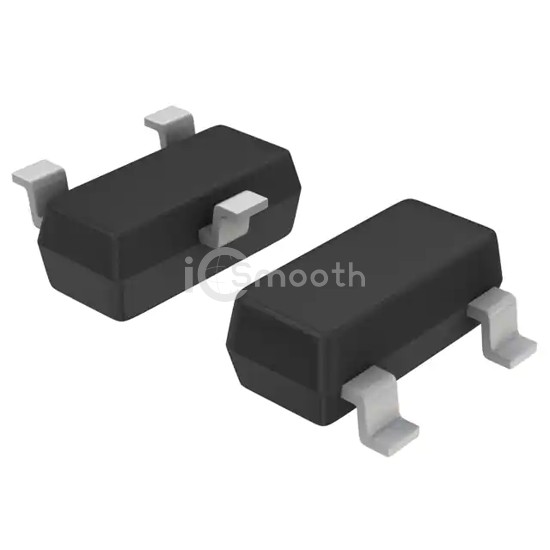

IRLML6401TRPBF

Infineon Technologies

MOSFET P-CH 12V 4.3A SOT23

IRLML6401TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 12V 4.3A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 4,691

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	50mOhm @ 4.3A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	830 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
