Name: IRLML6244TRPBF
Brand: Infineon Technologies
SKU: IRLML6244TRPBF
Price: 0.53 USD
Availability: InStock

REF: IRLML6244TRPBF Infineon Technologies

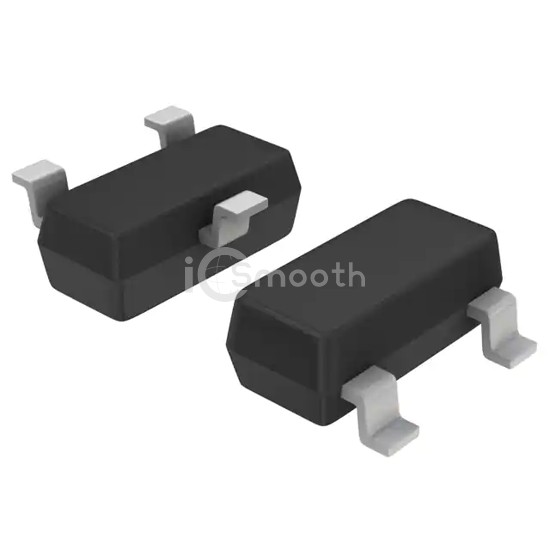

IRLML6244TRPBF

Infineon Technologies

MOSFET N-CH 20V 6.3A SOT23

IRLML6244TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 6.3A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 657,157

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	21mOhm @ 6.3A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	8.9 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 16 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
