Name: IRLML5203
Brand: Infineon Technologies
SKU: IRLML5203
Availability: InStock

REF: IRLML5203 Infineon Technologies

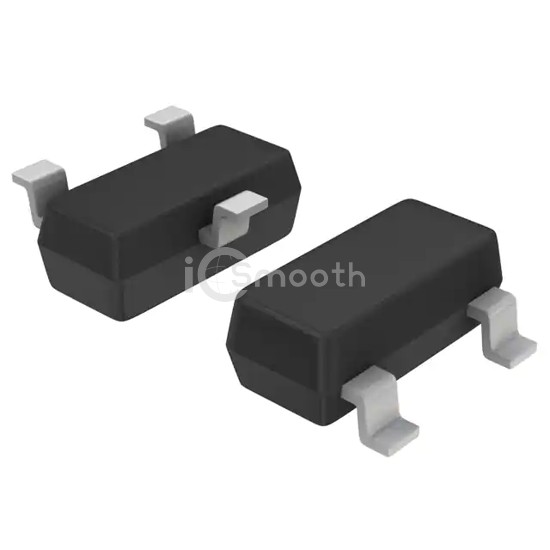

IRLML5203

MOSFET P-CH 30V 3A MICRO3/SOT23

IRLML5203 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 3A MICRO3/SOT23. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 6,617

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	98mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	510 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
