Name: IRLML5103TR
Brand: Infineon Technologies
SKU: IRLML5103TR
Availability: InStock

REF: IRLML5103TR Infineon Technologies

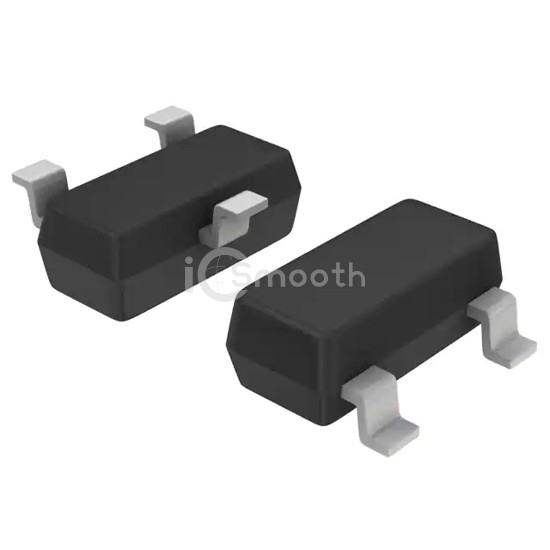

IRLML5103TR

MOSFET P-CH 30V 760MA SOT-23

IRLML5103TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 760MA SOT-23. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 2,347

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	760mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	600mOhm @ 600mA, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.1 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	75 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
