Name: IRLML2502TRPBF
Brand: Infineon Technologies
SKU: IRLML2502TRPBF
Price: 0.50 USD
Availability: InStock

REF: IRLML2502TRPBF Infineon Technologies

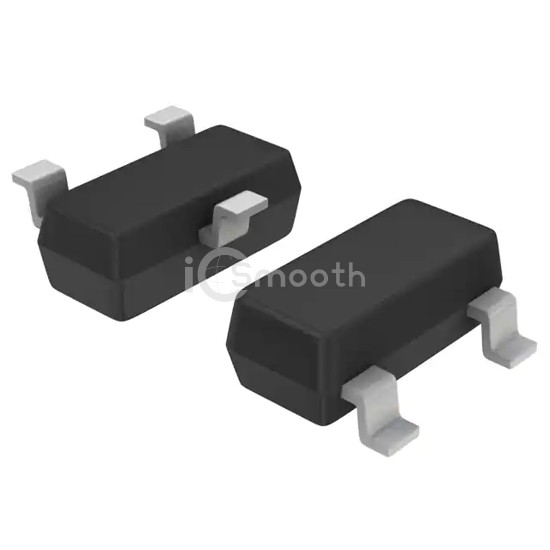

IRLML2502TRPBF

Infineon Technologies

MOSFET N-CH 20V 4.2A SOT23

IRLML2502TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 4.2A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 8,812

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	45mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	740 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
