Name: IRLML2402TR
Brand: Infineon Technologies
SKU: IRLML2402TR
Availability: InStock

REF: IRLML2402TR Infineon Technologies

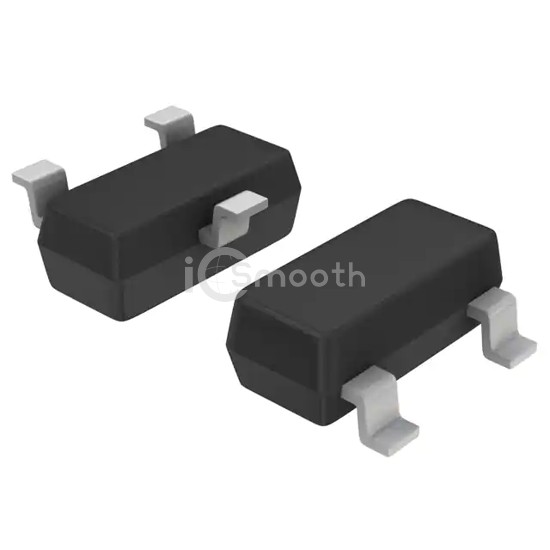

IRLML2402TR

MOSFET N-CH 20V 1.2A SOT-23

IRLML2402TR is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 1.2A SOT-23. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 1,137

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	250mOhm @ 930mA, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	3.9 nC @ 4.5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	110 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
