Name: IRLML2060TRPBF
Brand: Infineon Technologies
SKU: IRLML2060TRPBF
Price: 0.53 USD
Availability: InStock

REF: IRLML2060TRPBF Infineon Technologies

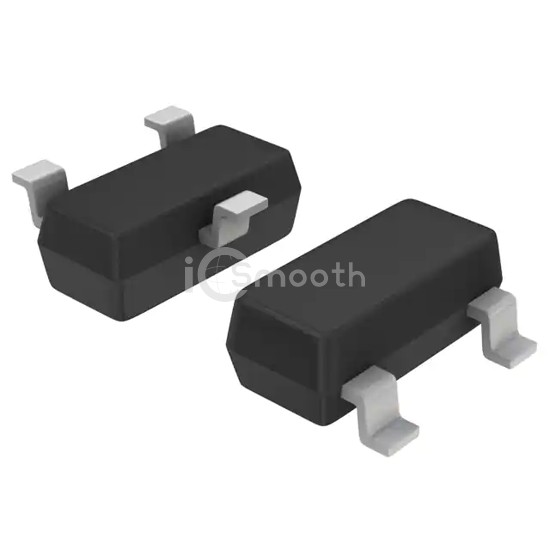

IRLML2060TRPBF

Infineon Technologies

MOSFET N-CH 60V 1.2A SOT23

IRLML2060TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 1.2A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 39,219

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	1.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	480mOhm @ 1.2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	0.67 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	64 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
