Name: IRLML2030TRPBF
Brand: Infineon Technologies
SKU: IRLML2030TRPBF
Price: 0.42 USD
Availability: InStock

REF: IRLML2030TRPBF Infineon Technologies

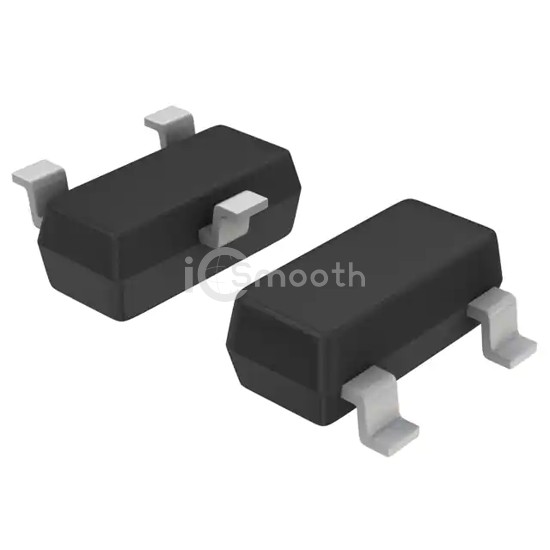

IRLML2030TRPBF

Infineon Technologies

MOSFET N-CH 30V 2.7A SOT23

IRLML2030TRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 2.7A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 2,800

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	100mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id	2.3V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	110 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
